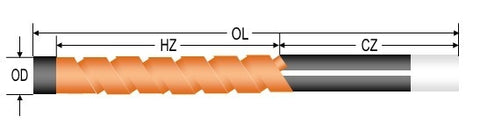

Description:
- Type SGR/UX
- Diameter, mm (OD)
- Hot zone length, mm (HZ)
- Cold end length, mm (CZ)
- Overall length, mm (OL)
Resistance and power：
|
Dia (mm) |
Nominal loading (at 1050C) |
|||
|
Hot Zone |
Cold End |
|||
|
Ω/mm |
W/mm |
Ω/mm |
W/mm |
|
|
16 |
0.03153 |
7.54 |
0.00791 |
1.40 |
|
18 |
0.02158 |
8.48 |
0.00430 |
1.50 |
|
20 |
0.02302 |
9.42 |
0.00384 |
1.60 |
|
25 |
0.01969 |
11.78 |
0.00328 |
1.75 |
|
30 |
0.01523 |
14.13 |
0.00190 |
1.75 |
|
32 |
0.01341 |
14.93 |
0.00152 |
1.85 |
|
35 |
0.01224 |
16.49 |
0.00150 |
2.00 |
|
38 |
0.01103 |
17.95 |
0.00116 |
2.00 |
|
40 |
0.00905 |
18.84 |
0.00100 |
2.10 |
|
45 |
0.00960 |
20.91 |
0.00079 |
2.10 |
|
50 |
0.00953 |
23.55 |
0.00075 |
2.20 |
|
54 |
0.00636 |
25.43 |
0.00073 |
2.30 |
